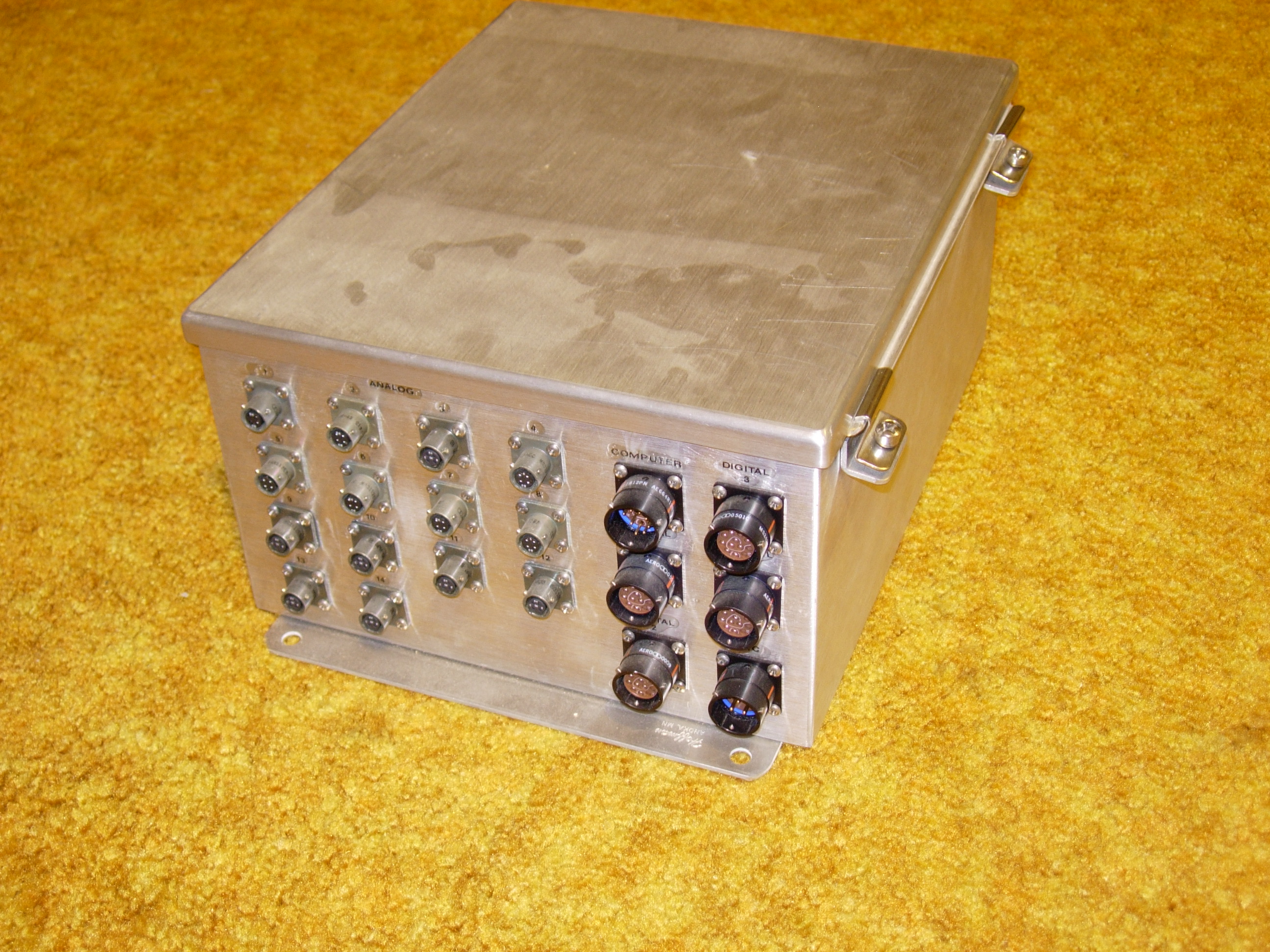

Standard RTU:
-
Safari Grade testing and environmental specifications
-
May be located as far as 500 meters from a SuperLogger
-
Standard power required: 10-30 VDC @ less than 10 Watts
-
300 MHz i86 micro processor running HT-DOS provides ample application
power yet little heat
-
ClockBoard Precision local clock - will run as a slave or as the local master
-

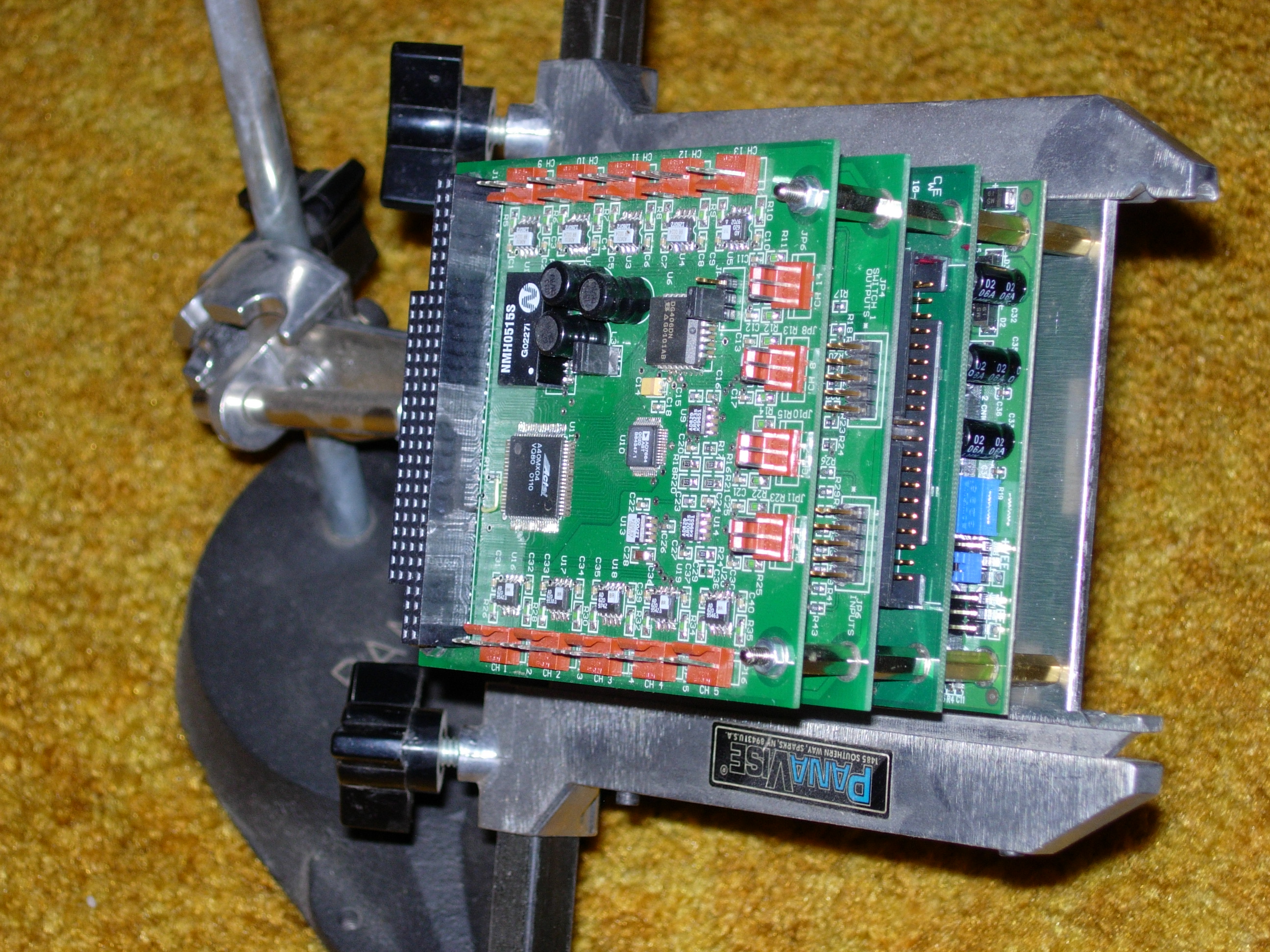

Right hand image shows the HPC/104 bus structure. It is as robust as they
come (used in Air Force fighter aircraft and Army tanks). Shown are: CPU
board, ClockBoard, General Purpose I/O board and the top board is our
precision 14 channel A2D board.
-
14 Analog-to-Digital inputs - 16 bit resolution (average of 8X oversample) -
balanced inputs, plus and minus 10 Volts - input Z greater than 100k Ohms -
20 samples per second from each channel - fifteenth channel is the precision
voltage reference - sixteenth channel is ground noise. Data from all 16
channels are packetized and sent to SuperLogger.
-
8 FET switches -- each able to switch 1 Amp at 50 VDC, software controlled
-
3 RS-232 ports - all the standard baud rates - used to control COTS devices -
received data are concentrated, packetized and sent back to the SuperLogger.
-
Application software can be developed using our development system or we
can develop it to your specifications.
Options:
|
-
Internet Connection Port and D-S-N Bridge Driver
-
GPS Receiver
-
14 additional A2D inputs
-
24 additional FET Switched outputs
|
|
-
2 GByte Compact Flash for local storage
-
4 additional RS-232 ports
-
Conversion to RS-422/485
-
Barometric Pressure
|
|
";
